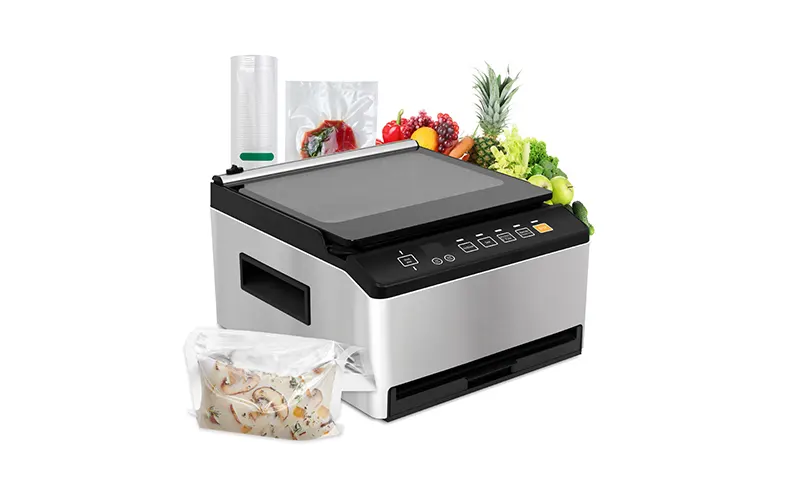

CVS101 Commercial and Household 98kpa Chamber Vacuum Sealer
Designed with chamber vacuum technology and dual sealing capability, the unit supports precise pressure control and flexible sealing methods. The structure allows both liquid and standard sealing processes while maintaining stable performance and convenient operation across repeated cycles.
- SUS430 & ABS body, toughened glass lid, LED light, Mechanical button
- Dual-mode: Precision chamber sealing for liquids or automatic fast external sealing for everyday use
- With built-in cutter
- Removable drip tray

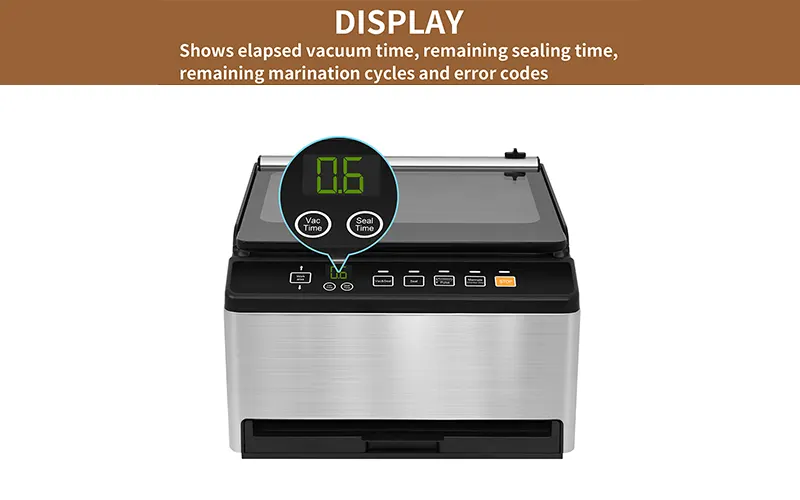

- Shows a countdown of the remaining sealing time
- Suitable for dry & moist food. Chamber vacuum sealing can vacuum & seal liquid

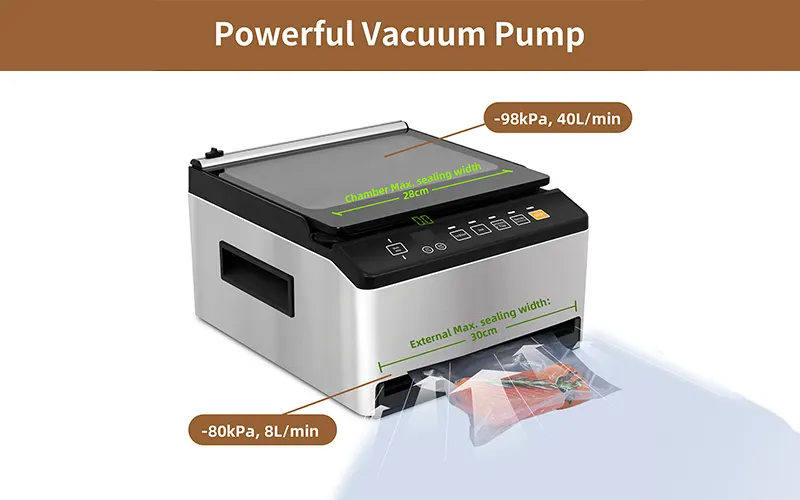

- 3 Pumps. Chamber: -98kPa, 40L/min. External: -80kPa, 8L/min

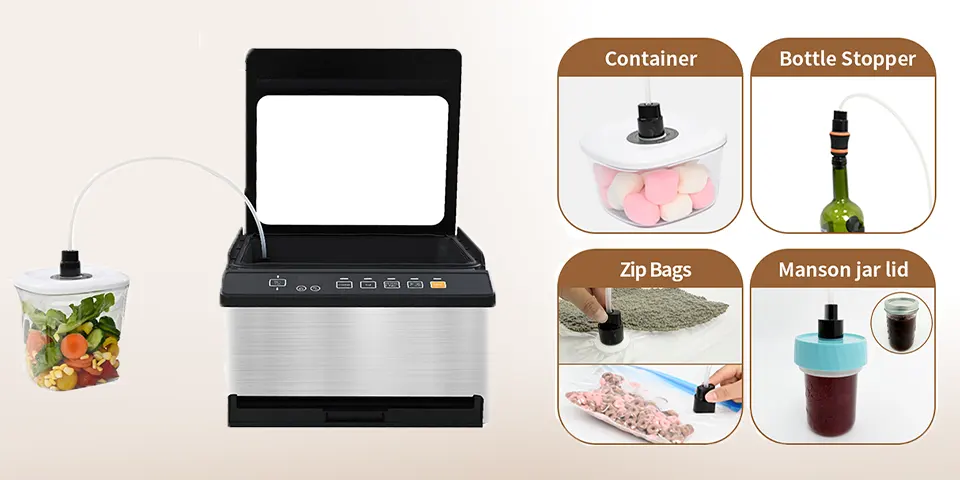

- Press ”Accessory“ button for vacuuming accessories (bottle, vacuum container, zip bag, etc)
- Press ”Marinate“ button to activate Marinating function
- Detachable power cord
- Easy operation & easy to clean
- Rated for 3,000 cycles, tested to 10,000 cycles
- Max. Width of bag: Chamber: 3mm×2 double sealing bar, External: 3mm single bar
- NTC overheating protection & Thermal fuse protection
-
Rated Voltage:
AC100-120V / AC220-240V
-
Rated Frequency:
50-60Hz
-
Rated Power:
220W
-
Vacuum Pressure:
Chamber: -98kPa, External: -80kPa
Get Free Quote
Download
Product Features
Manual Control
Pulse function allows precise vacuum control, perfect for delicate items or custom sealing.
Safe and Reliable
NTC overheating protection and thermal fuse safeguard the unit for long-term performance.
Easy to Clean
Detachable power cord and smooth surface design make cleaning quick and hassle-free.
Effortless Operation
Simple mechanical button and LED light ensure easy, intuitive control for any user.
Chamber Vacuum Sealing Equipment With Dual Mode Control
Chamber vacuum sealer combines chamber vacuum technology and external sealing into one coordinated system, allowing flexible sealing across different conditions. The system controls pressure, airflow, and sealing timing, supporting consistent performance during both liquid and standard sealing processes. Internal structure maintains stable airflow and temperature distribution, allowing each cycle to proceed smoothly.
Dual Mode Vacuum System With High Pressure Performance
- Chamber mode supports liquid vacuum sealing
- External mode supports fast everyday sealing
- Triple pump system improves vacuum speed
- Chamber vacuum reaches -98 kPa, external up to -80 kPa

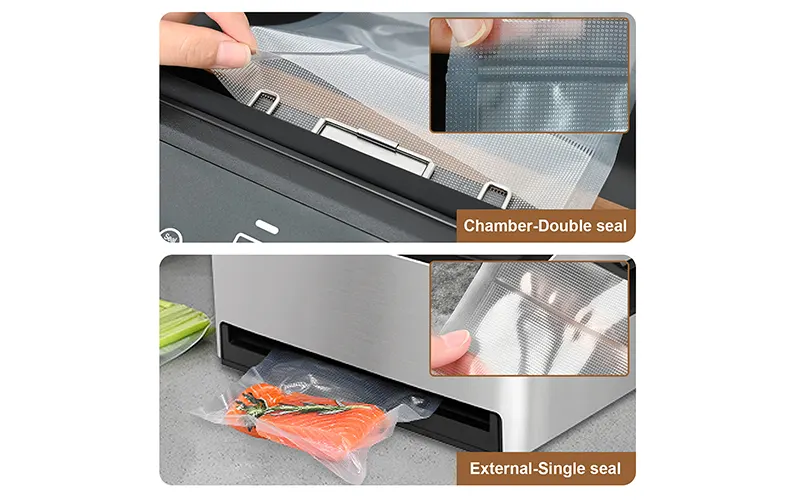

- Dual sealing bars for chamber mode, single bar for external mode
- Countdown display shows remaining sealing time
The chamber vacuum system removes air from both the bag and surrounding chamber, which helps prevent liquid expansion during vacuuming. This supports stable sealing for liquid-based contents while maintaining consistent pressure throughout the process.
The external sealing mode provides faster operation for standard sealing needs. Switching between modes allows the system to adapt to different conditions without changing equipment. The triple pump system increases airflow capacity, supporting faster vacuum cycles and stable performance.
Chamber vacuum sealer includes a built-in cutter for quick bag preparation and a removable drip tray for collecting liquid residue. These features help maintain internal cleanliness and support easier maintenance.
The structure uses SUS430 stainless steel combined with ABS material, supporting durability and stable operation. The toughened glass lid allows visibility during operation while maintaining structural strength.
NTC overheating protection and thermal fuse systems control temperature during use, reducing overheating risk. The detachable power cord supports flexible placement while maintaining full functionality.
Technical Specs
| Model | CVS101 |
| Description | Dual-Seal: Commercial Chamber Vacuum Sealer & External Vacuum Sealer |
| Material | SUS430, ABS, PC, Tempered glass |
| Rated Voltage | AC100-120V / AC220-240V |
| Rated Frequency | 50-60Hz |
| Rated Power | 220W |
| Vacuum Pressure | Chamber: -98kPa, External: -80kPa |
| Vacuum Pump | Chamber: 40L/min, External: 8L/min |
| Function Button | 8 Buttons: Work area, Vac Time, Seal Time, Vac & Seal, Seal, Accessory/Pulse, Marinate(Chamber Only), STOP |
| Work width (cm) | Chamber: Max. 28cm, External: Max. 30cm |
| Sealing Bar (mm) | Chamber: 3mm×2 double sealing bar, External: 3mm single sealing bar |
| Length of Power Cord (m) | 1.2mm |
| Machine Dimension (mm) | 398mm(L) x 355mm(W) x 229mm(H) |
| Package Dimension (mm) | 472mm(L) x 440mm(W) x 302mm(H) |
| NW (machine+power cord) | 10.5kg |
| GW | 12.5kg |
| Loading QTY (PCS) | 420/20GP, 840/40GP, 967/40HQ |
Designed for Effortless Food Storage at Home
The CVS101 Compact Vacuum Sealer combines advanced sealing technology, a built-in cutter, and user-friendly features to provide efficient food preservation with ease. Whether sealing dry or moist foods, this sealer ensures freshness and quality, making it a must-have tool for your kitchen.
Get Free Quote
Included Parts
- 5 × 20*30cm embossed bags
- 5 × 20*30cm glossy bags
- 1 × Accessory hose
- 1 × User manual
- 1 × Power cord
Dual-Seal Technology
Commercial Chamber & External Vacuum Sealing

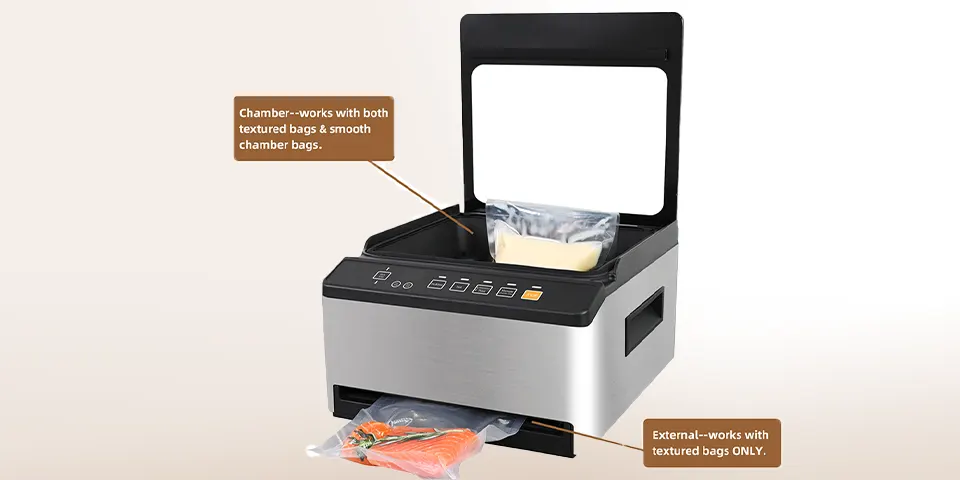

- Dual-mode: precision chamber sealing for liquids and messy items & automatic rapid external sealing for bulky, dry, and everyday goods.
- Chamber: works with both textured bags & smooth chamber bags.
- External: works with textured bags ONLY.
Built-In Cutter
Use to cut the sealed bag or make custom-sized bag
The built-in cutter allows you to easily cut vacuum bags directly from the roll storage, creating custom-sized bags to reduce waste. It ensures clean, precise cuts for both home and professional use, making the sealing process efficient and hassle-free.
Quick Marinade
5 vacuum & release cycles-accelerated marinating for food in the chamber!

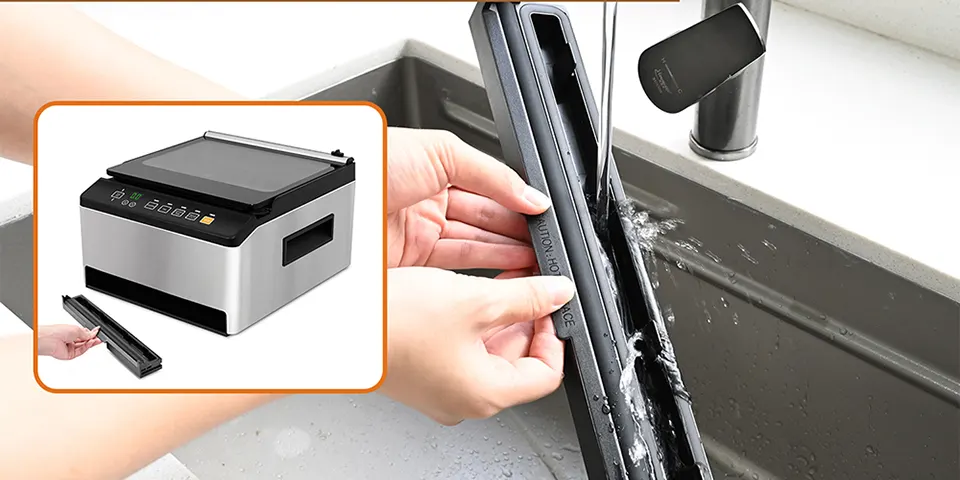

Removable Drip Tray
Easy to Clean
The removable drip tray is designed to catch any excess liquid during the sealing process, ensuring a clean workspace. It is easy to remove and clean, helping maintain hygiene and preventing spills. Ideal for sealing moist foods, it keeps your vacuum sealer functioning smoothly and efficiently.
Application Scenarios
Get Free Quote
Questions Before Ordering
-
Q.What is the maximum vacuum pressure of the CVS101 chamber vacuum sealer?
-
The CVS101 reaches up to -98 kPa in chamber mode and -80 kPa in external vacuum mode. Its triple-pump system provides up to 40 L/min airflow in chamber mode for efficient and stable vacuum sealing
-
Q.Can the CVS101 chamber vacuum sealer seal liquids and moist foods?
-
Yes. The chamber vacuum mode is designed for sealing liquids, moist foods, sauces, marinades, and other products containing moisture. Because the entire bag is placed inside the chamber, it provides better control when vacuum sealing liquid-based foods
-
Q.What types of vacuum bags can be used with the CVS101?
-
In chamber mode, the CVS101 can work with both smooth chamber vacuum bags and textured bags. The external vacuum mode is designed for textured vacuum bags.
-
Q.What is the maximum sealing width of the CVS101?
-
The chamber sealing area supports bags up to 28 cm wide, while the external sealing mode supports bags up to 30 cm wide. The chamber uses a 3 mm × 2 double sealing bar, while the external mode uses a 3 mm single sealing bar.
-
Q.Is the CVS101 suitable for commercial and household use?
-
Yes. The CVS101 combines chamber vacuum sealing with external vacuum sealing, making it suitable for commercial kitchens, food preparation businesses, restaurants, small food-processing applications, and household food storage. Its dual-mode design allows users to handle both liquid and dry food packaging with one machine.
-
Q.Can the CVS101 be customized for OEM and private-label projects?
-
Yes. YUMYTH supports OEM and ODM customization for the CVS101, including logo branding, packaging, voltage, plug type, labeling, and other market-specific requirements. The unit supports AC100–120V and AC220–240V, 50–60Hz configurations for different markets.
