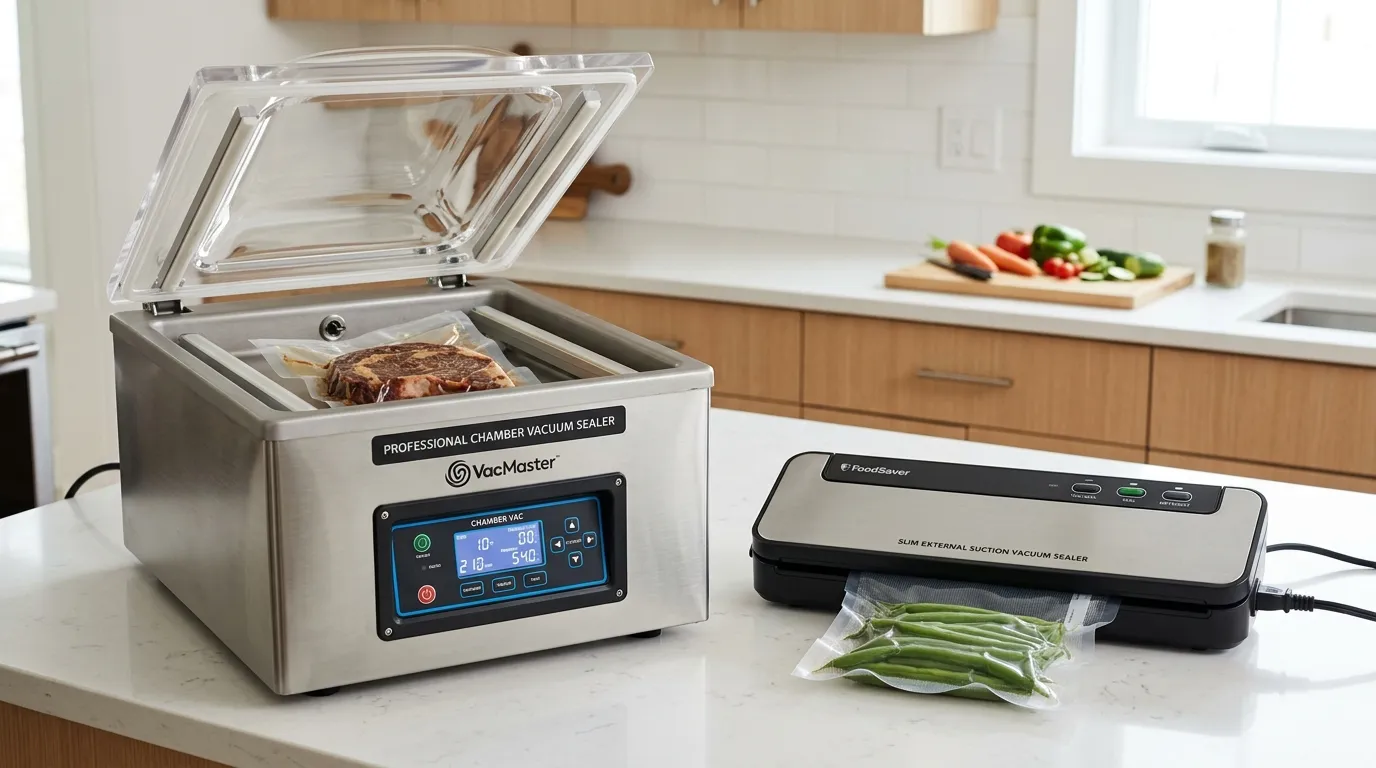

Chamber vs External Vacuum Sealer: Which Type Fits Your Workflow?

A chamber vacuum sealer is usually the better fit for frequent liquid-rich packaging, repeated batch work, and products that fit comfortably inside the chamber. An external vacuum sealer is often more practical for dry or moderately moist foods, occasional sealing, limited counter space, and long packages made from textured bag rolls.

Neither type is universally better. The right choice depends first on what you package and whether it physically fits the machine. Sealing volume, workspace, bag availability, controls, and ongoing costs come afterward.

A dual-mode machine can bridge the gap when one workflow includes both liquids and oversized packages, but its chamber and external modes may have different pump, bag, and sealing specifications.

Chamber or External: The Short Answer by Workflow

Workflow requirement	External vacuum sealer	Chamber vacuum sealer	Dual-mode option
Mainly dry foods	Strong fit	Strong fit	Usually unnecessary unless other needs exist
Moist meat or fish	Suitable with moisture control and careful loading	Strong fit	Useful for mixed workloads
Soups, sauces, and free liquids	Limited without chilling, freezing, or other preparation	Usually the better fit	Strong option when large dry packages are also needed
Long or custom-length packages	Strong fit with textured bag rolls	Limited by chamber dimensions	External mode can handle longer packages
Frequent batch sealing	Depends on duty cycle and recovery time	Often better suited when properly specified	Useful if both modes support the required workload
Limited counter or storage space	Usually the easier choice	Often larger and heavier	Requires chamber-sized installation space
Lower initial equipment budget	Usually more accessible	Usually higher	Often higher than external-only models
Smooth chamber pouches	Usually incompatible	Standard choice for many chamber systems	Compatibility depends on the operating mode
Textured or embossed bags	Standard requirement for most models	May be unnecessary in chamber mode	Often required in external mode
Delicate or crush-sensitive foods	Pulse or gentle mode can help	Controlled vacuum can work well	Depends on the controls available in each mode

The most important filters are product state and package size. A machine that cannot handle the liquid content or fit the package is unsuitable even if its pump rating, price, or feature list looks attractive.

How Chamber and External Sealers Remove Air Differently

Both machine types remove air and heat-seal a pouch, but they create the vacuum in different ways. That design difference affects liquid movement, bag construction, package dimensions, and cycle performance.

What Happens Inside a Chamber Machine

A chamber machine places the entire open pouch inside a sealed chamber.

1. The lid closes and the pump removes air from the chamber.
2. Pressure decreases both around the pouch and inside its open mouth.
3. The seal bar closes the pouch while it remains under vacuum.
4. Air returns to the chamber, pressing the sealed pouch around the product.

Because the pressure around the pouch falls along with the pressure inside it, liquids are not pulled directly toward a narrow external suction channel. This pressure equalization is the main reason chamber machines are generally more suitable for soups, sauces, brines, and liquid-rich marinades.

Technical descriptions of the chamber vacuum cycle also distinguish evacuation, sealing, and chamber aeration as separate stages.

What Happens in an External or Suction Sealer

An external vacuum sealer—also called a suction or edge sealer—keeps the product outside the machine. Only the open end of the bag enters the vacuum channel.

The machine draws air through the bag opening and seals the mouth after reaching the selected vacuum level. Most external systems require textured or embossed bags. Their internal channels keep an airflow path open while the two sides of the bag are being pressed together.

This design offers two practical advantages:

• The package does not need to fit inside a chamber.
• Bag rolls can be cut to custom lengths for long meat cuts or irregular products.

The limitation is that moving air can also pull moisture toward the vacuum channel and sealing area. Pulse control, moist modes, chilling, careful bag positioning, or partially freezing the product may help, but these measures do not turn every external machine into a free-liquid sealer.

Compare the Factors That Actually Change the Decision

Dry Foods, Moist Foods, and Free Liquids

“Wet food” is too broad to be a useful selection category. A better comparison separates products into three groups.

Dry products include grains, coffee, nuts, dry ingredients, and many frozen solids. Either machine type may work well, so package size, sealing frequency, and available space become more important.

Moist solids include fresh meat, fish, marinated portions, and foods with limited surface moisture. A capable external machine may handle these products using moist, pulse, or gentle controls. The operator still needs to keep liquid away from the sealing area.

Free liquids include soups, sauces, brines, stews, and products surrounded by a large amount of marinade. These generally favor chamber operation because the machine is not drawing air and liquid directly through the bag mouth.

Chamber sealing does not eliminate every liquid problem. Reducing pressure also lowers a liquid’s boiling point. If the product is warm enough, it can begin to boil inside the chamber before reaching the machine’s maximum vacuum. Chilling the product and using appropriate liquid-control settings can reduce this risk. Henkelman’s technical explanation of vacuum packing liquids describes this relationship between pressure and boiling temperature.

For detailed preparation and control methods, see the guide to choosing a vacuum sealer for liquids.

Bag Compatibility and Package Size

Bag compatibility is not a minor accessory issue. It is part of the machine architecture.

Most external sealers need textured bags because the embossed channels allow air to travel toward the vacuum port. Smooth bags can collapse around the opening too early and block the airflow path.

Chamber machines commonly use smooth chamber pouches because the pump removes air from the entire chamber rather than relying on channels inside the bag. Some chamber or dual-mode models can also work with textured bags, but buyers should confirm compatibility for the exact model and operating mode.

Package dimensions create a second hard constraint.

For a chamber machine, check:

• Usable chamber length and width
• Chamber depth
• Lid clearance
• Seal-bar length
• Maximum pouch-opening width
• Product shape after loading

Exterior machine dimensions do not reveal the usable chamber capacity. A product may fit across the seal bar but still prevent the lid from closing correctly.

External machines avoid the chamber-fit problem. Their maximum width still depends on the seal bar, but a bag roll can support longer packages. This is useful for whole fish, long meat cuts, or products that would not sit flat inside a compact chamber.

Sealing Volume, Pump Performance, and Recovery

Maximum vacuum pressure and pump flow answer different questions.

A vacuum-pressure figure, often shown in kPa, indicates the pressure level a machine is designed to reach under specified conditions. Pump flow, usually shown in litres per minute, describes how quickly the pump can move air. A high maximum vacuum rating does not automatically mean faster cycles.

Chamber volume also matters. A larger pump evacuates a small chamber differently from a large chamber. Practical throughput depends on the complete cycle:

• Air-removal time
• Seal time
• Chamber aeration or bag release
• Cooling or recovery time
• Operator loading and unloading time

For occasional household work, a short pause between packages may not matter. In a restaurant or small production workflow, recovery delays can reduce output significantly.

Buyers planning consecutive cycles should ask for:

• Typical cycle time under stated conditions
• Recommended consecutive-cycle limit
• Recovery or cooling requirements
• Tested bag and product conditions
• Pump-service requirements
• Seal-bar heating limits

Maximum pressure alone does not make a machine suitable for commercial work. A properly selected commercial vacuum sealer must also match the required throughput, package dimensions, and maintenance conditions.

Footprint, Cleaning, Controls, and Continuing Cost

External sealers are usually easier to store because the product remains outside the machine. Many are light enough to move between a cabinet and countertop.

A chamber unit needs enough space for the body, lid movement, loading access, and ventilation. Its weight may make permanent placement more practical than repeated storage.

Cleaning requirements also differ. External machines may collect moisture in the vacuum channel or removable drip tray. Chamber machines require regular cleaning of the chamber, seal area, lid gasket, and any surfaces exposed to spills.

Useful controls may include:

• Pulse or manual vacuum for delicate products
• Gentle pressure settings
• Dry and moist sealing modes
• Adjustable seal time
• Marinate or infusion programs
• Accessory ports for containers
• Bag-roll storage and cutters
• Single or double sealing lines

These features should support a real workflow rather than serve as a longer specification list. A separate guide to the modern vacuum sealer explains how newer controls and sealing functions affect operation.

The lowest purchase price is not always the lowest operating cost. Compare:

Equipment cost + expected annual bag cost + maintenance and replacement parts over the planned ownership period

Use actual local pouch prices and expected package volume. Smooth chamber pouches may cost less than textured bags in some markets, but that is not a universal rule. Availability, thickness, barrier properties, package size, and order quantity all affect the result.

Which Type Fits Common Vacuum-Sealing Workflows?

Choose an External Sealer When…

An external model is usually the practical choice when:

• Most products are dry or only moderately moist.
• Sealing volume is occasional or moderate.
• Counter space and storage are limited.
• Portability matters.
• Long or custom-length bags are frequently needed.
• Textured bags and rolls are readily available.
• The lower equipment entry cost matters more than high-volume liquid packaging.

External machines are not limited to basic dry-food storage. Models with pulse, moist, and gentle controls can handle many meat, fish, meal-prep, and sous-vide workflows. Their main limitation remains free liquid moving toward the vacuum channel.

Choose a Chamber Sealer When…

A chamber machine is usually the stronger fit when:

• Soups, sauces, brines, or liquid-rich marinades are common.
• The products fit inside the usable chamber.
• Repeated batch sealing is part of the daily workflow.
• Smooth chamber pouches are available.
• Consistent sealing cycles matter.
• The workspace can support a larger, heavier machine.
• Chamber functions such as controlled vacuum or marinating have a defined use.

A chamber machine should not be selected solely because its published vacuum pressure is higher. Package fit, pump flow, recovery, seal construction, and service requirements remain part of the decision.

Consider Dual-Mode When One Workflow Needs Both

A dual-mode machine can make sense when the same operation needs chamber sealing for liquids and external sealing for long or oversized packages.

For example, a small food business might chamber-seal sauces and marinated portions but use external mode for long cuts that cannot fit inside the chamber. One machine can cover both tasks without requiring two separate units.

The compromise is that each mode may have its own:

• Pump flow
• Maximum vacuum
• Work width
• Bag requirement
• Seal configuration
• Cycle performance

Compare the specifications for chamber and external mode separately. Do not assume that a dual-mode unit delivers identical performance in both.

How to Compare Specifications Without Being Misled

Published specifications are useful only when the measurement conditions are clear. Before buying, ask the supplier or manufacturer to confirm the following.

Vacuum and Pump Data

• Is the pressure figure gauge pressure or absolute pressure?
• Where was it measured?
• What were the test conditions?
• What is the pump flow in each operating mode?
• Does the quoted figure represent peak performance or normal operation?

A statement such as “-98 kPa” should not be converted automatically into an exact percentage of oxygen or air removal.

Physical Capacity

• What are the usable internal chamber dimensions?
• What is the lid clearance?
• What is the seal-bar length?
• What is the maximum pouch-opening width?
• Can the machine seal products that extend beyond the body in external mode?

Cycle and Seal Performance

• What is the typical cycle time with the intended product?
• How many consecutive cycles were tested?
• Is recovery time required?
• Does the machine create one sealing line or two?
• Is seal time adjustable for different pouch thicknesses?

Bags, Maintenance, and Service

• Which pouch structures work in each mode?
• Are smooth, textured, roll, or valve bags supported?
• Are gaskets, seal wires, pumps, and other wear parts available?
• What cleaning and pump-maintenance procedures are required?
• What service documentation is supplied?

Certification and Regional Configuration

Worldwide buyers should verify that any certificate matches the exact model, voltage, plug, components, and destination market. A statement that a product can be manufactured for a regional requirement is not the same as presenting a valid certificate for the exact configuration being purchased.

Private-label and distributor buyers should also confirm branding, control-panel language, labels, packaging, manuals, and power configuration before production.

What YUMYTH’s Current Models Show About the Trade-Off

YUMYTH’s published range provides a useful model-specific example of how chamber, external, and dual-mode specifications can differ. These figures describe the listed products only; they should not be treated as universal benchmarks.

Specification	CVS101 chamber mode	CVS101 external mode	VS6606X external sealer
Published vacuum	-98 kPa	-80 kPa	Optional -60 or -80 kPa
Published pump flow	40 L/min	8 L/min	Optional 5 or 8 L/min
Maximum listed work width	28 cm	30 cm	30 cm
Listed bag compatibility	Smooth chamber and textured bags	Textured bags	External-compatible textured bags
Machine format	Dual-mode chamber unit	Same dual-mode unit	External countertop unit

The CVS101 chamber vacuum sealer is listed with dimensions of 398 × 355 × 229 mm and a net weight of 10.5 kg. Its chamber and external modes have different published pressure and pump-flow figures, showing why each mode should be evaluated independently.

The VS6606X external vacuum sealer is listed at 402 × 161 × 85 mm with a net weight of 1.61 kg. Its published features include dry, moist, and super-moist modes, pulse control, roll storage, a cutter, and an accessory connection.

This comparison reflects the broader trade-off: the chamber-capable unit adds liquid and dual-mode functionality but requires substantially more space and weight. The external-only model remains easier to position and store.

Final Decision Checklist

Before choosing a machine, define the workflow in measurable terms:

1. List the products. Separate dry solids, moist solids, and free liquids.
2. Measure the largest package. Include product height, pouch width, pouch length, and lid clearance.
3. Estimate sealing volume. Record packages per session and per day.
4. Check available workspace. Include room for the lid, loading, ventilation, and cleaning.
5. Confirm bag availability. Compare smooth chamber pouches, textured bags, and rolls using local prices.
6. Identify necessary controls. Choose pulse, moist, marinate, accessory, cutter, or double-seal features only when the workflow needs them.
7. Review performance evidence. Ask for pressure conditions, pump flow, cycle time, consecutive-cycle testing, and liquid-test methods.
8. Check regional requirements. Confirm voltage, plug, labels, manuals, and model-specific compliance documents.
9. Review service support. Verify wear parts, maintenance instructions, service documentation, and warranty terms.

Vacuum packaging can reduce oxygen exposure, but it does not sterilize food or make refrigerated products automatically shelf-stable. The FDA Food Code and University of Minnesota reduced-oxygen packaging guidance emphasize the need for proper time, temperature, and food-safety controls.

For mainly dry foods, limited space, and long packages, start with an external sealer. For liquids, repeated batch work, and products that fit inside the chamber, choose a chamber system. For mixed workflows, compare dual-mode performance in each mode rather than treating it as a single specification.

To discuss a suitable configuration, send YUMYTH your product type, liquid condition, maximum package dimensions, daily volume, preferred bag format, voltage, plug, and destination market through the contact page.
