A vacuum sealer removes most of the air from a bag or enclosed chamber, then uses a heated sealing bar to close the package before outside air can return. The process combines three separate functions: pressure reduction, controlled airflow, and heat sealing.

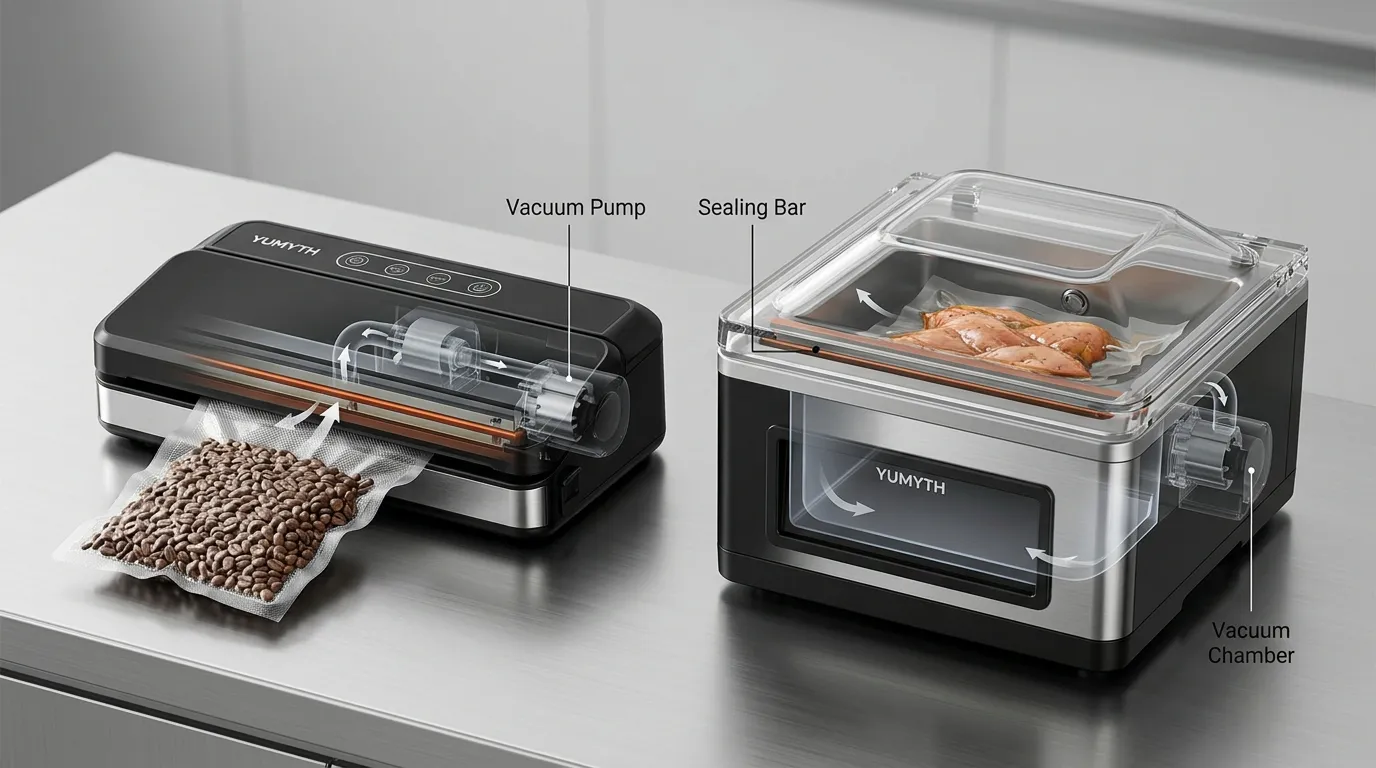

External vacuum sealers draw air through the open end of a bag. Chamber machines reduce pressure around the entire pouch before sealing it. These different airflow paths explain why machine types vary in bag compatibility, liquid handling, and operating performance.

This guide focuses on what happens inside the machine. For bag preparation, positioning, mode selection, and operating steps, see How to Use a Vacuum Sealer.

What a Vacuum Sealer Actually Does

The word “vacuum” can be misleading. A food vacuum sealer does not normally create a perfect vacuum or remove every oxygen molecule. It lowers the pressure inside a package and removes a substantial amount of the air before sealing the opening.

The USDA definition of vacuum packaging describes a process in which air is substantially removed from a rigid or flexible container before it is sealed. That wording is more accurate than saying the package becomes completely air-free.

Two operations are involved:

1. Evacuation: The pump moves air out of the bag or chamber.

2. Sealing: The machine fuses the bag opening to limit air from returning.

These operations depend on each other, but they are not the same. A powerful pump cannot compensate for a contaminated or incomplete seal. Likewise, a strong seal does not help if the machine cannot establish a proper airflow path.

Vacuum-sealed food is also considered a form of reduced-oxygen packaging. Lower oxygen exposure can slow oxidation and some aerobic spoilage processes, but it does not sterilize the food.

The Vacuum-and-Seal Cycle, Step by Step

Although controls vary between machines, most vacuum-sealing cycles follow the same functional sequence.

1. The Lid, Gasket, and Bag Create a Controlled Airflow Path

The machine first needs a closed area in which it can reduce pressure. On an external sealer, the open end of the bag is placed inside a vacuum channel and the lid clamps over it. A compressible gasket helps prevent outside air from leaking into the channel.

In a chamber machine, the entire pouch sits inside an enclosed chamber. The bag opening is positioned across the sealing bar, but it remains open during the evacuation stage.

Incorrect bag placement, a dirty gasket, or an incomplete lid closure can prevent either system from reaching its intended pressure.

2. The Pump Reduces Pressure and Moves Air Out

Once the cycle begins, an electric vacuum pump draws gas away from the package.

In an external machine, air travels from inside the bag, through the open bag mouth, into the vacuum channel, and then toward the pump. In a chamber machine, the pump removes air from the entire chamber, reducing pressure both around and inside the open pouch.

The machine must also decide when to stop evacuating and begin sealing. Depending on the design, this transition may be controlled by:

• A fixed time.

• A programmed cycle.

• A pressure sensor.

• Manual pulse control.

• An operator stop command.

A modern vacuum sealer may combine automatic cycles with manual controls for delicate or moisture-rich products. However, not every automatic machine uses the same sensing method or control logic.

3. The Sealing Bar Closes and Stabilizes the Package

After evacuation, the sealing bar presses across the bag opening. A heating element raises the temperature of the heat-sealable film layers until they soften and bond together.

Reliable heat sealing depends on several connected factors:

• Sufficient temperature.

• Contact pressure.

• Seal dwell time.

• A flat, clean sealing area.

• Enough cooling time after heating.

The DuPont heat-sealing guidelines describe temperature, pressure, and dwell time as key variables in seal formation. If the bag mouth contains grease, liquid, crumbs, or wrinkles, parts of the film may not fuse continuously.

After heating stops, the new seal needs a brief period to cool and stabilize. Pulling or flexing the package immediately can weaken a seal that has not fully set.

How an External Vacuum Sealer Works

An external vacuum sealer, also called an edge or suction sealer, removes air through the open end of a bag while most of the package remains outside the machine.

The usual airflow sequence is:

1. The open bag edge is placed in the machine’s vacuum channel.

2. The lid closes and compresses the gasket.

3. The pump draws air through the bag opening.

4. The flexible bag collapses around the contents.

5. The sealing bar fuses the bag mouth.

6. The machine releases the lid or channel pressure.

External machines commonly use textured or embossed bags. Small channels in the bag surface preserve paths through which air can travel as the two sides of the bag press together.

A completely smooth bag may flatten around its opening before sufficient air has escaped. This can block the airflow path unless the machine has a design specifically intended to support smooth pouches.

External suction also creates practical limitations. Liquid or food moisture can move toward the vacuum channel as pressure inside the bag falls. If that moisture reaches the sealing area, it may interrupt film bonding. Dry, moist, gentle, and pulse modes can adjust the evacuation or sealing process, but their exact operation depends on the model.

For a more detailed explanation of moisture-related controls, see the tabletop vacuum sealer guide.

Delicate items can also compress as outside atmospheric pressure pushes the flexible bag against the product. Pulse control lets the operator stop evacuation before bread, soft fruit, or fragile foods are crushed.

How a Chamber Vacuum Sealer Works

A chamber vacuum sealer places the entire pouch inside an enclosed chamber rather than drawing air only through the bag opening.

The process works differently:

1. The filled pouch is placed inside the chamber.

2. Its open end rests across the sealing bar.

3. The lid closes and the pump removes air from the chamber.

4. Pressure falls both outside and inside the open pouch.

5. The sealing bar closes the pouch while chamber pressure remains low.

6. A vent valve allows air back into the chamber.

7. Restored atmospheric pressure presses the sealed pouch around the contents.

Because pressure decreases around the entire pouch, the bag does not collapse against the product in the same way during evacuation. The pouch tightens mainly after sealing, when normal atmospheric pressure returns to the chamber.

This pressure sequence also explains why chamber machines can generally handle liquids more effectively. The pressure surrounding the open pouch decreases along with the pressure inside it, reducing the sharp pressure imbalance that can pull liquid toward an external suction channel. Liquid behaviour still depends on product temperature, cycle settings, fill level, and machine design.

Chamber machines commonly use smooth pouches because the pump is evacuating the chamber itself. The bag does not need embossed channels to maintain a narrow airflow path through its opening.

YUMYTH’s CVS101 provides a company-specific example of a dual-mode design. Its published product information distinguishes between chamber operation, which supports smooth or textured bags, and external operation, which uses textured bags. These compatibility details apply to that named model rather than every machine in the category.

For detailed selection factors beyond the operating mechanism, see Chamber vs External Vacuum Sealer.

External and Chamber Mechanics Compared

Neither format is universally better. The correct mechanism depends on the product, bag format, liquid content, package size, operating volume, and required controls. Those broader purchase criteria belong in a dedicated machine comparison rather than a basic explanation of how the cycle works.

What Vacuum Pressure, Pump Flow, and Seal Specifications Mean

Vacuum-sealer specifications often combine numbers that describe different parts of the process. They should not be treated as interchangeable.

A rating such as -80 kPa or -98 kPa is usually presented as gauge pressure, meaning it is measured relative to ambient atmospheric pressure. Vacuum engineering references such as the Pfeiffer Vacuum fundamentals guide distinguish this from absolute pressure, which uses a perfect vacuum as its reference.

A negative-kPa rating should not be converted directly into an exact percentage of oxygen removed from every package. The finished result can be affected by elevation, machine control, bag volume, food shape, leaks, moisture, film behaviour, and residual gases.

Pump flow indicates how quickly gas can be moved. A higher flow rate may shorten evacuation time, particularly with larger bags or chambers, but it does not automatically mean the machine reaches a deeper final vacuum.

YUMYTH’s published CVS101 specifications illustrate this distinction. Its chamber and external modes list different pressure and pump-flow values. The figures show that operating mode can change both evacuation speed and pressure capability; they do not establish a universal performance result for every package.

Commercial buyers comparing workload, pressure, and sealing configurations can continue with the commercial vacuum sealer guide.

Why Vacuum Seals Fail Even When the Pump Works

A completed vacuum cycle does not guarantee that the package will remain sealed. Failure can occur during evacuation, heat sealing, or later handling.

Textured-bag compatibility is especially important with external systems. If the bag surfaces close the airflow path too early, the pump may run without removing enough air from the package.

Seal contamination is another common cause. Even a small wrinkle or strip of moisture can interrupt the bonded line. The machine may appear to complete the cycle correctly, but air can later pass through the weak section.

Punctures create a different failure path. The seal may remain intact while air enters through film damaged by bones, shells, sharp corners, or rough handling.

These examples show why vacuum pressure and seal integrity must be evaluated separately. A strong pump cannot repair a blocked channel, damaged pouch, or contaminated sealing surface.

What Vacuum Sealing Can and Cannot Do for Food

Reducing air exposure can help slow oxidation, limit some aerobic spoilage activity, and reduce moisture loss during frozen storage when the package remains intact. It can also improve contact between the package and food for organised storage or sous-vide preparation.

It cannot replace safe temperature control or validated food-processing methods.

Vacuum packaging does not kill all bacteria. Removing oxygen can suppress some aerobic organisms, but reduced-oxygen conditions may still support pathogens that can grow without oxygen under suitable temperature and food conditions.

The University of Minnesota Extension guidance on reduced-oxygen packaging identifies Clostridium botulinum and Listeria monocytogenes as relevant hazards requiring proper process and temperature controls. Michigan State University Extension also warns that vacuum sealing does not remove the need for refrigeration, freezing, or safe handling.

Food type, starting quality, cleanliness, storage temperature, packaging film, and seal integrity all affect storage life. For that reason, one universal freshness multiplier or shelf-life table would be misleading.

How These Principles Appear in Real Vacuum Sealer Designs

Real machines combine the same basic functions in different configurations.

YUMYTH’s published range includes external models and a dual-mode chamber/external system. The CVS101 product page lists separate chamber and external pressure and pump-flow specifications, showing that a single machine can use two distinct evacuation methods.

Selected external models also publish features such as pulse control, moisture-related settings, different pressure options, and defined sealing widths. The VS8001G product page lists a dual 3 mm sealing structure and canister functionality. These are model-specific features rather than universal characteristics of all vacuum sealers.

For B2B projects, YUMYTH states that OEM/ODM discussions may cover variables such as vacuum strength, sealing modes and time, controls, voltage, bag compatibility, appearance, and accessories. The suitable configuration still depends on the product being packaged, required bag format, moisture level, package dimensions, and expected workload.

After understanding the basic mechanism, buyers can review YUMYTH’s vacuum sealer range to compare machine formats and published specifications against their application requirements.
